Description
Ideal for health, safety, environment (HSE) applications within potentially combustible areas, this robust PTZ camera includes early smoke and fire detection analytics. It has worldwide certifications for use in Class I/II/III Division 1 and Zone 1,21.

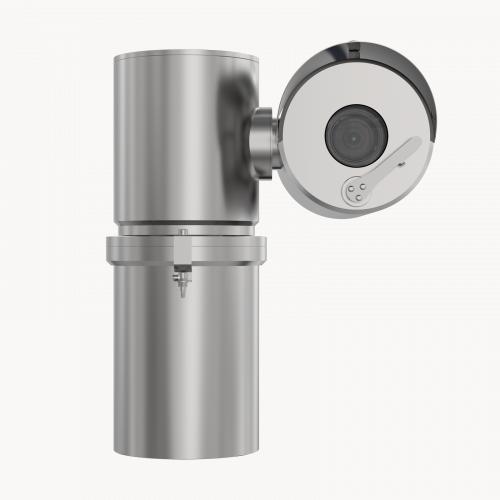

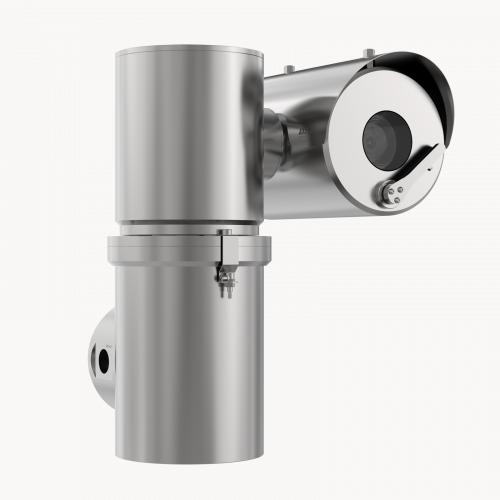

Explosion-protected stainless steel (316L) PTZ network camera certified for use in hazardous areas according to ATEX, IECEx, cMETus. Ex db IIC T5 Gb, Ex tb IIIC T100°C Db, Class I/II/III Div 1 Groups B, C, D, E, F, G, Class I Zone 1 AEx db IIC T5 Gb, Zone 21 AEx tb IIIC T100°C Db. IP 66/67/68, Type 4X. Certificate: 20ATEX0651X (ATEX), EXV 20.0017X (IECEx), E115198 (cMETus), part code: P21. AXIS Q1785 1080p HDTV camera inside with 32x optical zoom, auto focus and day/night mode. Continuous 360° pan and tilt and 256 preset positions. Multiple, individually configurable H.264 and Motion JPEG streams; max HDTV 1080p resolution at 25/30 fps. It supports Onvif, WDR, EIS and built-in smoke and fire detection. Operating temp -60°C to +60°C. 110-230VAC, RJ45 and SFP for fiber or coax connection. Integrated wiper, sunshield and AXIS Surveillance microSDXC card 128Gb included.
Camera
| Image sensor |
CMOS |
| Image sensor size |
1/2.8 |
| Lightfinder |
Lightfinder |
| Wide dynamic range |
Forensic WDR |
| Min illumination/ light sensitivity (Color) |
0.16 lux |
| Min illumination/ light sensitivity (B/W) |
0.03 lux |
Video
| Max video resolution |
1920×1080 |
| Max frames per second |
50/60 |
| Electronic image stabilization |
Yes |
Lens
| Focal length |
4.3 – 137 mm |
| Optical zoom |
32 |
| Horizontal field of view |
60-2.3 ° |
| Vertical field of view |
39-1.3 ° |
Compression
| Zipstream |
Yes |
| H.264 |
Baseline, Main |
| H.265 |
– |
| Motion JPEG |
Yes |
Security
| Signed firmware |
Yes |
| Secure boot |
– |
| TPM |
– |
General
| Remote focus |
– |
| Remote zoom |
– |
| Local storage (memory card slot) |
Yes |
| Outdoor Ready |
Yes |
| IP rating |
IP66, IP67, IP68 |
Power
| Power (max) |
– |
| Power (average) |
– |
| DC input voltage |
– |
| AC input voltage |
100-240 V |
